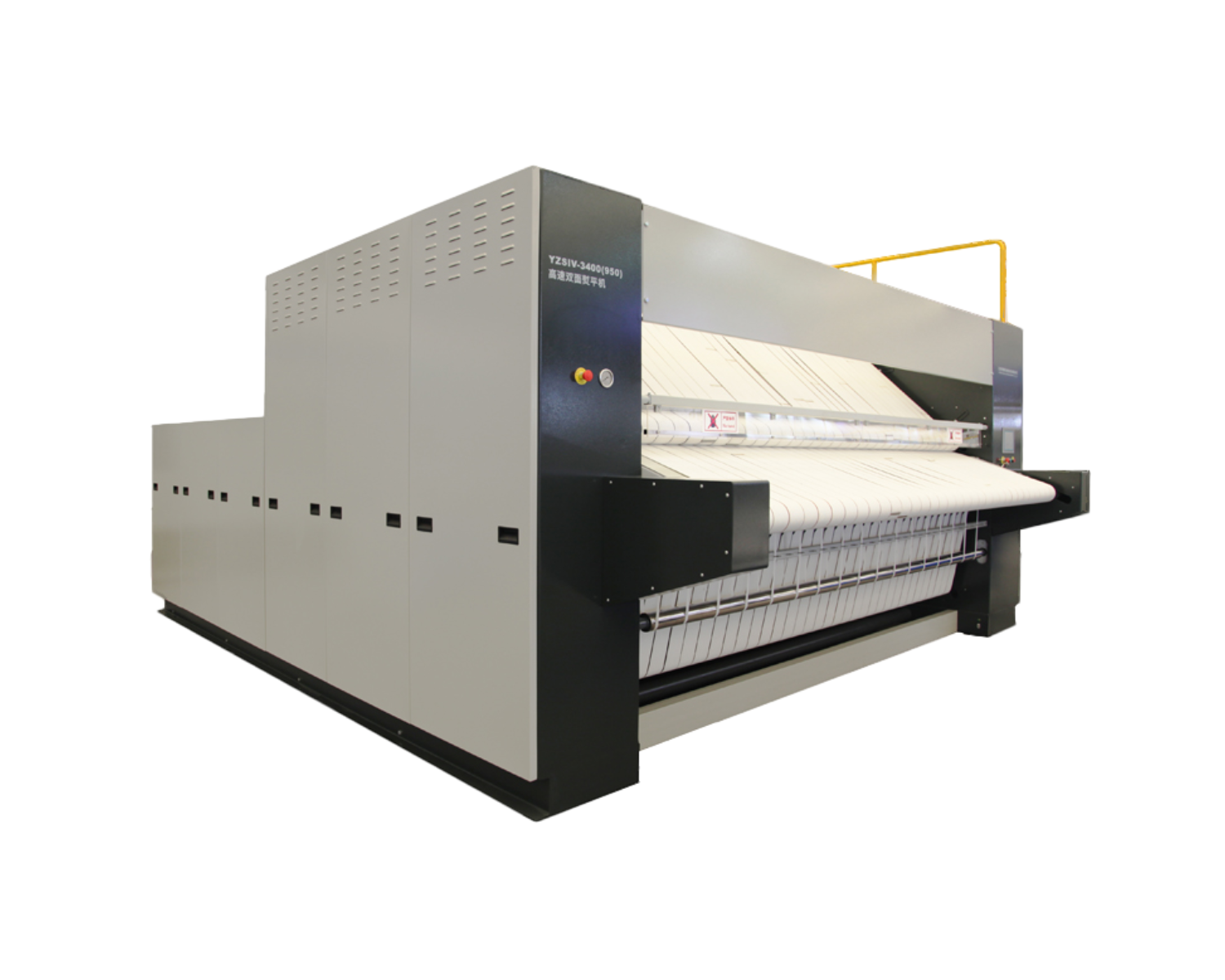

HIGH-SPEED-SERPENTINE-FLATWORK-IRONER

YZSVI - HIGH SPEED SERPENTINE

FLATWORK IRONER

  • The device adopts superposition method, which has the advantages of compact structure, fast heat transfer and high thermal efficiency.
    The variable frequency drive method is adopted to realize the non-polar speed regulation, so that the ironing speed can be adjusted freely in the limit range, and the energy saving effect is significant.
  • The equipment adopts frame structure, which has the advantages of strong structure and good stability.
  • The equipment adopts V-shaped belt and chain as transmission medium, which has the advantages of smooth transmission, good cushioning and low noise.
  • 251-degree linen contact with drying cylinder, adopting double sides ironing design improves the working efficiency. Especially improving the ironing quality of flatness.
  • Heavy structure design, the thickness of both sides’ cabinet up to 16mm, the whole machine weight is 12.8 tons. It is processed by imported CNC laser cutting machine and assures the strength and precision.
  • The ironing cylinder is made of high-quality boiler carbon steel, which is with thermal conductivity 2.5 times that of stainless steel.
  • It is also with better pressure resistance, and the cylinder can withstand the steam pressure of 1.2MPa at the maximum. The wall of cylinder is 11mm thick, which ensures large heat retention and even heating.
  • Serpentine design makes the linen wrapping angle up to 270 degrees, which significantly improves the ironing performance.
  • A safety valve is installed at the steam inlet and will stop the steam supply automatically when the steam pressure is higher than the safety value.
  • Thermal insulation design at both ends of rolls and all the steam pipes can reduce steam consumption by 5%.
  • Steam pressure is adjustable to prevent excessive ironing and reduce the waste of steam.

Main Parameter

DescriptionUnitYZSVI-3400(950)
Rated powerkW5.5
Compressed air pressureMpa0.4-0.6
Steam pressureMpa0.6-0.8
Steam pipe diameterDN40
Steam consumptionkg/h530
Drainage pipe diameterDN40
Ironing speedm/min0-50
Working widthmm≤3400
Ironing rollmm950/3420
Dimensionmm5040*4750*2287
Weightkg15100
