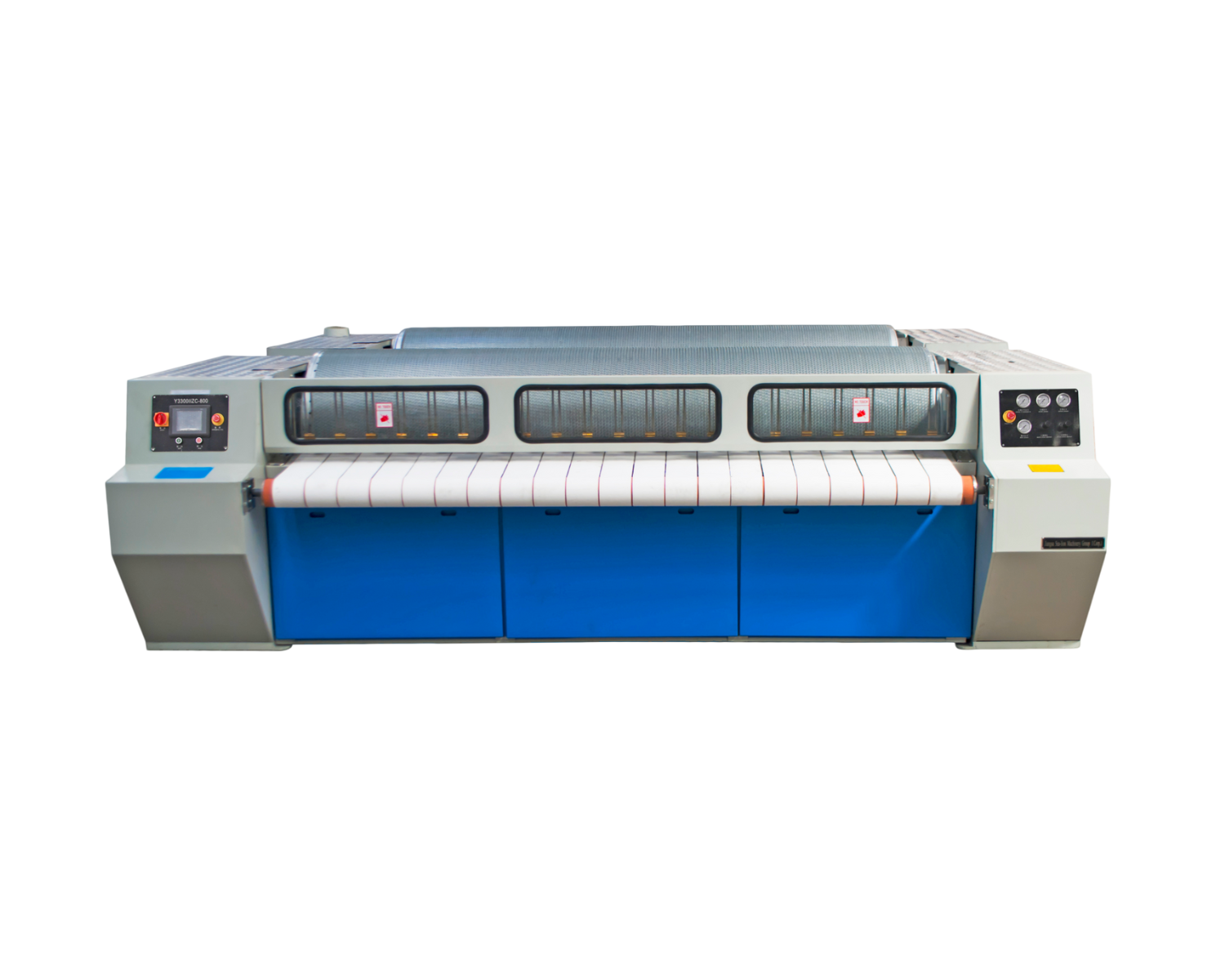

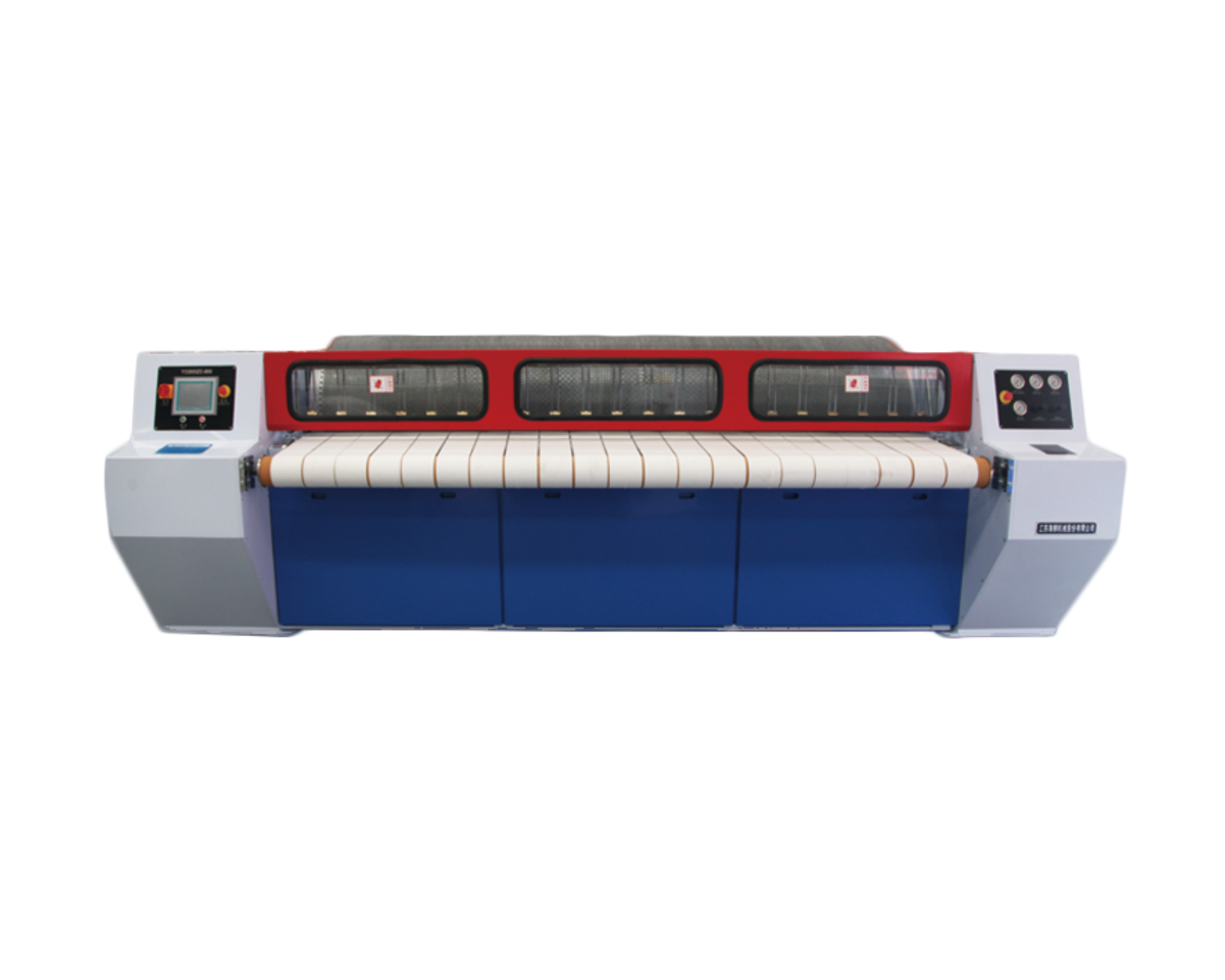

YZC SERIES - HIGH SPEED CHEST IRONER
- Sea-lion YZC series double chest ironers are high performers thanks to the precise structure of the double chest, springs and heat proof felt which ensures the rolls keep adequate elasticity and spring cushion for maximum surface contact with the chest.
- Features ironing speeds up to 30-40 meters per minute.
- Sea-Lion Chest Ironers are engineered for high productivity industrial multi-roll flatwork ironers offers an excellent combination of efficiency, quality and convenience, making it one of the finest ironers in the industry.
- Available in 2 rollers of 800 and 1300 mm dia with 3300 mm working width.
- The arc surface of the chests has a big angle so that the heating area is big, and the heat can be fully used.
- Driven by only motor, the energy consumption is reduced. Thanks to the inverter, the ironing speed can be adjusted 8-40 meters/minute according to different temperature, type of linen and relative humidity.
- The precise structure of the double chest, springs, and padding ensures that the rolls retain enough elasticity and spring cushion to maintain the linen and chest surface well-touched.
- A pressure controlling system for steam and compressed air is installed to ensure the machine is running within normal parameters. Rolls can be lift and locked onto the machine in case a sudden loss of power.
- Thanks to the heat recycling system’s innovative design. Steam in the chest can run smoothly and efficiently, allowing the heat to be effectively utilised, and the outside of the chest includes an insulation layer to prevent heat waste.
- A fan is mounted on each roll to totally expel moisture, allowing the chests to remain dry and prevent rust formation.
Main Parameter
DESCRIPTION | UNITS | Y3300IIZC-800 | Y3300IIZC-1300 |
---|---|---|---|
Steam pressure | Mpa | 0.6-1.0 | 0.6-1.2 |
Steam pipe diameter | DN | 50 | 50 |
Roll diameter (mm) | mm | 800 | 1270 |
Numbers of chests | 2 | 2 | |
Maximum ironing/W | mm | 3300 | 3300 |
Main drive electric motor | kW | 11 | 18.5 |
Machine Weight | kg | 7800 | 15500 |
Ironing speed (m/min.) | m/min | 6-30 | 8-45 |
Exhaust pipe diameter | mm | 2 x 138 | 2 x 150 |
Exhaust fan | kW | 1.1 x 2 | 2.2 x 2 |
Dimension (L/W/H) | mm | 3106/4750/1400 | 4000/5230/1700 |
Condenser pipe diameter | DN | 25 | 25 |
Compress air pressure | Mpa | 0.5-0.7 | 0.5-0.7 |
Compress air pipe/DM | mm | 8 | 8 |
