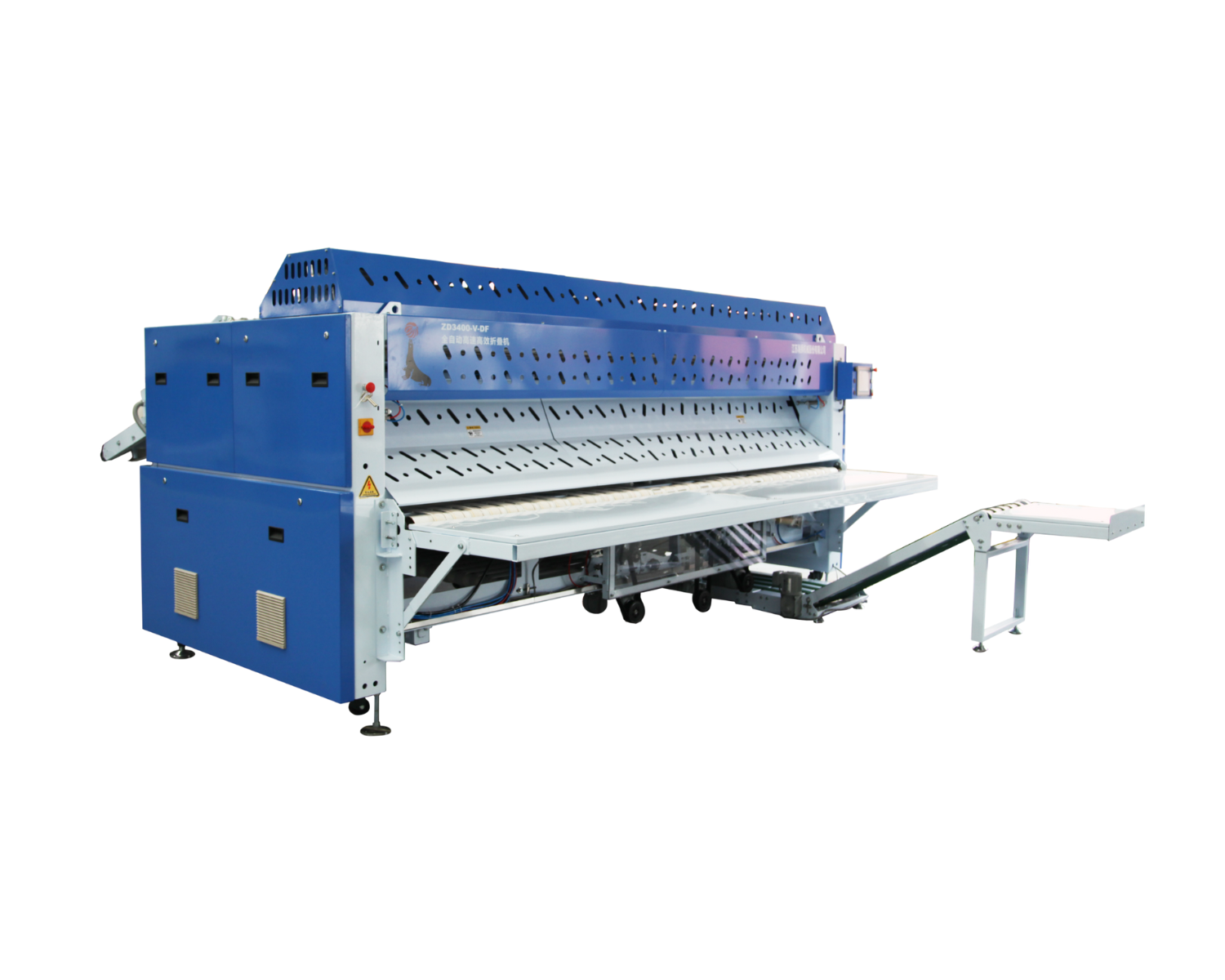

AUTOMATIC HIGH - SPEED FOLDER WITH STACKER
- The Sea-Lion intelligent linen folder is the industry’s most efficient folder, with the highest efficiency and productivity. It does two forward lengthwise folding and three left/right breath-wise folding, for a total of five folding capabilities. The maximum folding size is 3000 × 3000 millimetres.
- SEA-LION Folders are a great way to fold linens. Sensors measure and position the items to be folded, making the folder a totally automatic operation.
- A positive-reverse control is adopted for folding 4th and 5th folds which ignores the size and thickness of the linens, as each fold is measured by optical sensors to ensure the folding line is done accurately in the middle of the linen.
- In addition to the anti-static bar design, the unique airflow system separates the linen from the belts properly before folding.
- Optical sensors are equipped to ensure accurate detection of linen dimensions. Folds are completed by a combination of pneumatic and mechanical blades for best performance with minimal air consumption.
- Seven inverters are used to independently control speeds. Five are dedicated for folding and two for stacking.
- Based on measuring cloth size, the photoelectric detection and speed testing system controls cloth transmission speed and correctly folds the cloth.
- With a fabric speed control and precise positioning, a transmission system can accurately determine the fabric length and calculate the fold length.
- Self-diagnostic and safety protection system, simple to use and maintain on a daily basis.
- Two independent drive motors are controlled by a VFD and have the ability to change steeples folding speed within 50m/min, making them compatible with all types of ironing machines.
- Control panel in its entirety. Touch Screen allows you to programme several sorts of folds, as well as control and sensors that allow users to visualise the passage of the bed sheets, measure the length, and execute the fold according to the size and profile users set.
- Fine adjustments are possible for better fold quality and finish. It also enables the execution of a basic program that performs 5 folds in the centre of the pieces, regardless of their size, thereby simplifying the operation and eliminating the need for piece separation.
- Adjustable speed may be used with a corresponding ironing machine, and it can communicate with the ironing machine. The folder speed can be automatically synchronised with the ironing machine speed.
TECHNICAL SPECIFICATIONS
Item name | Unit | ZD3300-V-DF |
---|---|---|
Folding length (max.) x width | mm | 3600×3300 |
Working capacity (normal sheet) | m/min | 30 |
Supply pressure | Mpa | 0.5-0.7 |
Compressed air consumption | L/min | ~80 |
Rated input power | Kw | 0.75+0.37 |
Power consumption | Kw/h | 0.6 |
Drainage of air compressor | m³/min | 0.3 |
Dimensions (LxWxH) | mm | 4940×2530×1930 |
Machine weight | Kg | 1450 |
External power line | mm² | 4 (Users) |
Power supply | V/P/Hz | 480/3/50 |
